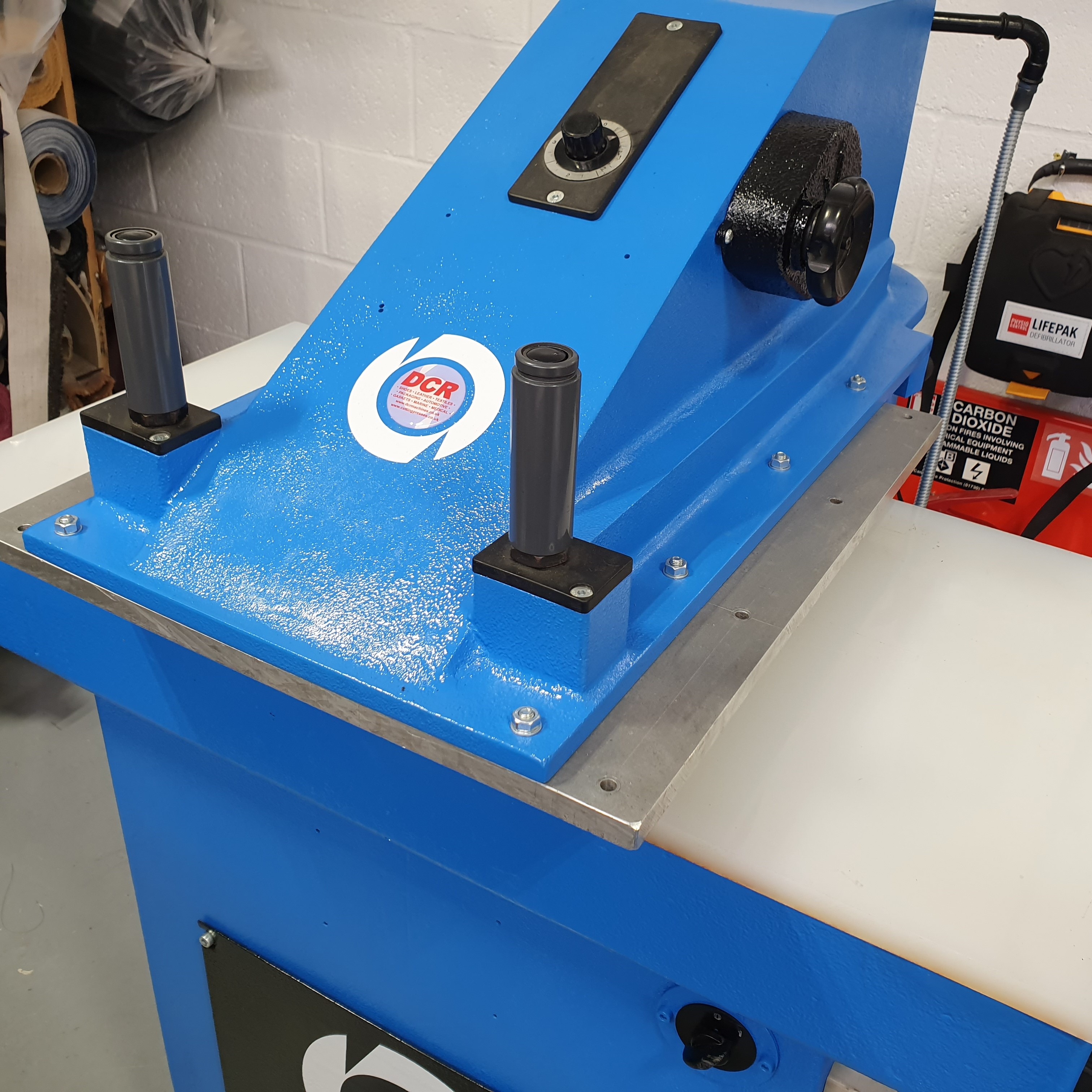

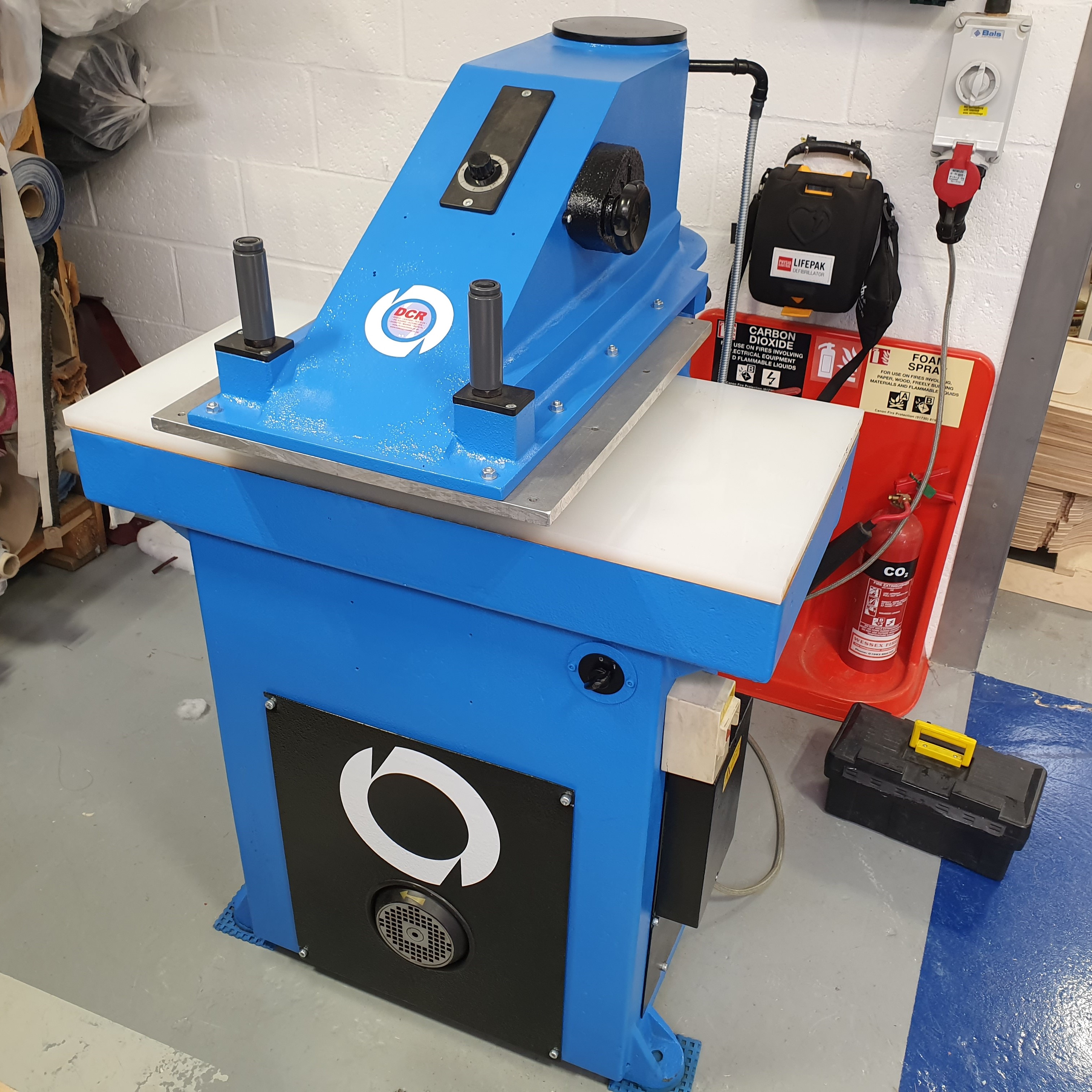

This clicker press has 20 tonnes of pressure and comes with a 390mm wide beam (head) size
CUSTOM PLATE SIZES AVAILABLE
900 x 450mm table
140mm daylight between the head and the cutting table
overall dimensions 900 x 960 x 1425mm
Net Weight 880 Kgs
Used in many industries to cut materials such as leather, fabrics, rubber, paper, gasket material, mdf, cardboard, thin plastics, foam, insole, very thin metals, kevlar etc. using a steel die or a wooden forme.
The press comes bolted to a pallet with a cutting board, instruction manual, rubber feet and lifting eyes for if you need to take it off the pallet for grounding.
We have many different presses with larger/smaller sized beams and cutting pressures- contact us for more details
